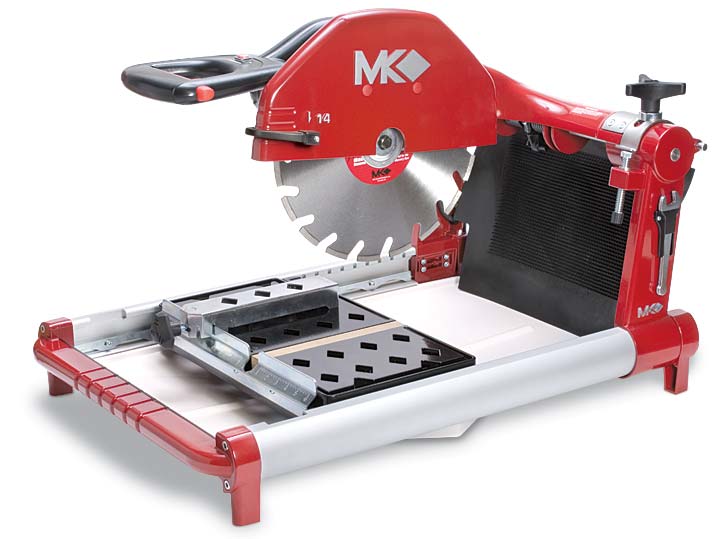

BX-4
The BX-4 uses a patent pending misting system to control dust generated during cutting. The ergonomically designed handle allows for easy operation and control for either left or right handed cutting. Unique features include a removable plastic tray and a locking table. The adjustable depth stop prevents cutting through the table. One-year limited warranty.
Interested in this product? Please reach out to us to learn about availability and delivery options if needed.
| Model | BX-4 Misting | BX-4 Dry |
| Part # | 165486 | 162761 |
| Voltage | 120V | 120V |
| Amps | 15 | 15 |
| Horse Power | 1-3/4 | 1-3/4 |
| Amps | 15 | 15 |
| Blade RPM | 3,500 | 3,500 |
| Blade Capacity | 14" (356mm) | 14" (356mm) |
| Arbor Size | 1" (25mm) | 1" (25mm) |
| Max. Material Size | 8" x 8" x 16" | 8" x 8" x 16" |
| Depth of Cut | 5" (127mm) | 5" (127mm) |
| Length of Cut | 16" (406mm) | 16" (406mm) |
| L x W x H | 35" x 24" x 21" | 35" x 24" x 21" |
| L x W x H (mm) | 889 x 610 x 533 | 889 x 610 x 533 |
| Weight | 70 lbs. (32 kg.) | 70 lbs. (32 kg.) |
| Shipping Method | UPS / Fed-Ex | UPS / Fed-Ex |
