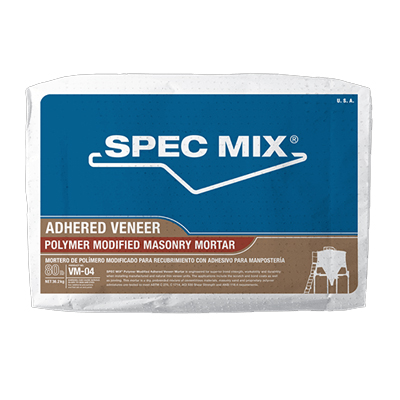

Polymer Modified Adhered Veneer Mortar (PMAVM)
ULTIMATE BOND. NON SAGGING.
SPEC MIX® Polymer Modified Adhered Veneer Mortar (PMAVM) is a technologically advanced adhered veneer mortar for use in bonding adhered manufactured stone veneer, natural thin cut stone and thin brick to a cementitious substrate. PMAVM is designed to provide excellent workability, cohesion, high bond strength, sag resistance, water resistance, efflorescence minimization, and durability. SPEC MIX PMAVM is the ideal solution for architects and contractors with projects where an immediate and ongoing need for mortar delivering high bond strength and sag resistance during installation is required. In applications where mortar joints are not utilized, such as dry stack applications, SPEC MIX PMAVM should be used to gain additional bond strength and “pop-off” protection. Installing natural thin cut stone veneer is aided by the unique anti-sag and high bond properties of SPEC MIX PMAVM.
SPEC MIX PMAVM meets the requirements of ASTM C 1714 and ASTM C 270 for Type S and N mortar including ANSI 118.4 (F-5.1.5) and TMS 402/602 shear bond standards. SPEC MIX PMAVM has been rigorously tested to reduce the probability of unit “pop-offs” and contractor call-backs to repair adhered veneer failures common with standard mortars. SPEC MIX PMAVM is available in standard and custom colors.
In addition to custom mix designs that are available for specific applications or properties, the SPEC MIX Polymer Modified Adhered Veneer Mortar is designed to be compatible with the characteristics of most all specified adhered masonry veneer units. It is acceptable for all types of construction: concrete, masonry, wood frame or steel studs, with submittals available upon request.
Interested in this product? Please reach out to us to learn about availability and delivery options if needed.
• Provides excellent workability, cohesion, high bond strength, sag resistance, water resistance, efflorescence minimization, and durability
• Unique anti-sag and high bond properties
• Meets ASTM C 1714 and ASTM C270 requirements for type S mortars including ANSI A 118.4 and TMS 402/602 shear bond standards
• Designed to be compatible with the characteristics of most all specified adhered masonry veneer units
| SPEC MIX Polymer Modified Adhered Veneer Mortar (PMAVM) Performance Standards | ||
|---|---|---|
| Bond Strength | Requirement | PMAVM |
| TMS 402/602 28 Day Shear Bond (laboratory prepared) | 50 PSI (0.3 MPa) | >300 PSI (2.0 MPa) |
| ANSI A 118.4 7 Day Shear Bond (laboratory prepared) | 300 PSI (2.0 MPa) | >400 PSI (2.7 MPa) |
| SPEC MIX Polymer Modified Adhered Veneer Mortar (PMAVM) Variables | |
|---|---|
| Open Time | |
| Room Temperature Open Time (70 to 77 ˚F or 21 to 25 ˚C) | Exceeds 65 min |
| High Temperature Open Time (100 to 110 ˚F or 37 to 43 ˚C) | Exceeds 25 min |
| Adjustability | |
| Room Temperature Adjustability (70 to 77 ˚F or 21 to 25 ˚C) | Exceeds 35 min |
| High Temperature Adjustability (100 to 110 ˚F or 37 to 43 ˚C) | Exceeds 15 min |
| Sag on Vertical Services | 0 inch |
| Polymer Modified Adhered Veneer Mortar (PMAVM) Approximate Coverage Rates | ||
|---|---|---|
| Application | 80 lb (36.2 kg) Bag | 3,000 lb (1,360.7 kg) Bag |
| Scratch Coat | 20 to 23 ft² (1.8 to 2.1 m²) | 750 to 860 ft² (70 to 80 m²) |
| Bonding Coat | 24 to 26 ft² (2.2 to 2.4 m²) | 900 to 975 ft² (84 to 91 m²) |
| Joint Grout - 1/2 in (13 mm) JOINTS | 38 to 40 ft² (3.5 to 3.7 m²) | 1,425 to 1,500 ft² (132 to 139 m²) |
| Full Installation (Scratch, Bond, Joint) | 13 to 15 ft² (1.2 to 1.4 m²) | 485 to 560 ft² (45 to 52 m²) |
| Note: The yields given above are approximate and depend on labor practices, site conditions and design of work. Yields include typical waste. Some areas such as FL, CA, OR, and WA experience higher yields due to construction practices. Please contact your local representative for more specific yield information in your area. |
